Overview
The TDOC System has been designed to be scalable. This was done to enable it to be operated in different configurations depending on the size (or scale) of the Job(s) it is being used to administer, and the needs of the people using it, as well as the infrastructure which is available to the organisation using it.

TDOC has also been designed to be portable, so that as a Job or Project progress's from concept though outline design to detailed design and construction through to operation (when it is used for facilities management), the information viz documents and database can be moved and accessed as needed.

In summary, this means that a user with some smaller Jobs on his laptop is not precluded from operating at the same time using a different configuration.
Back to Contents

Single User

The user accesses the data which is kept on the users pc.

The TDOC software is the same as for Multi User.
Singel User
Back to Contents

Multi User

The users access the data which is stored on the server. Each user performs its record locking service, as well as sifting the data to be displayed. Thus it has heavy network traffic.

Supplied as default, TDOC is "Advantage aware" meaning that there is no need to upgrade the TDOC software in order to implement Client Server.

Multi user (dumb server) mode
Back to Contents

Multi User with Client Server Engine

Each user communicates with the Client Server, which manages the data (i.e. the file and record locking). The server returns only the data needed by the users, so reduces the network traffic substantially, and gives high data security.

Requires: Advantage Server.

Client Server mode (using Advantage Server)
Back to Contents

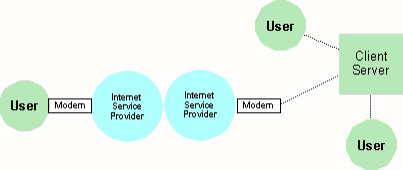

Using the Internet with a VPN

An extension to the client server model, it allows a user to connect via the internet as if the user was connected to the local network.

Requires: Advantage Server

{short description of image}
An alternative view of this infrastructure. {short description of image}
Back to Contents

Using the Internet and Electronic Data Interchange (EDI)

TDOC enables you to send and receive EDI emails with your trading partners who do NOT have any Document Control software.

Requires: Access to a PHP server - the TDOC PHP server is always available. The necessary scripts are available from TDOC Support.

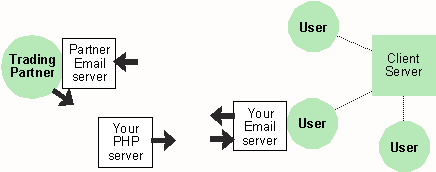

Structured email i.e. EDI

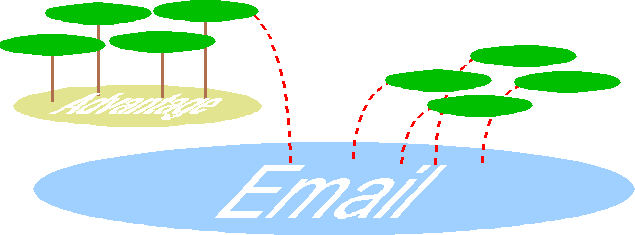

An alternative view of this infrastructure {short description of image}
Back to Contents

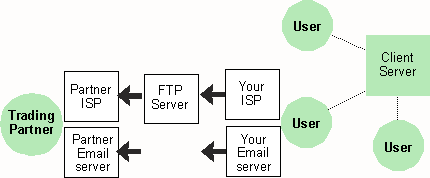

Using the Internet with FTP and Email
TDOC enables you to send more technical documents by FTP than is possible by email due to email size restraints.

Requires access to an FTP server which allows HTTP downloads..
{short description of image}
Back to Contents
