• The master which is attached to the Document. TDOC may be used to locate and launch the master, but it is NOT a replacement for a CAD management system. It is recommended that the root of filename for the electronic document and its document number are the same, with the extension reflecting the document type: e.g. MASTER1.cad.
• The published edition of a revision which is attached once it is published. It is STRONGLY recommended that published editions should be in a format that is not editable, but capable of being marked up, e.g. PDF format. In a similar manner to the naming of the master, the electronic versions of revisions is based on the master plus the revision: e.g. MASTER1_REV.pdf

• Create or Revise a Document,
  • Accessed from Technical Documents, Edit, Own.
  • See Edit below.
• Issue a Revision of a Document.
  • Accessed from Technical Documents, Issues, Own
  • See Technical Documents, Issue Documents.
• Receive back a Revision of a Document with the recipient's Status and Comment.
  • Accessed from Technical Documents, Incoming, and then
    • Returns, Own - when the revision being returned was NOT issued to the recipient,
    • Comment Sheets - for returns made by the recipient directly.

• The Documents, with Document Number and Title
• The Revisions of the Documents, with Revision Number and Date
• The Issues of the Revisions with Recipient and Reason for Issue
• The Returns of Revisions of Documents with Status and Comment

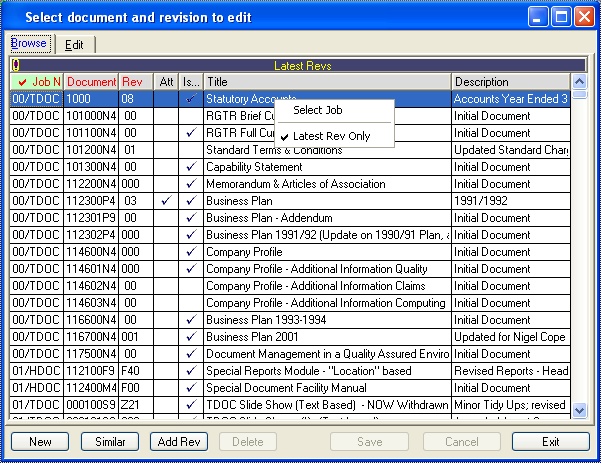

• Browse the Register: see Browse below,
• Make a Tree View Enquiry: see Enquiry below,
• Generate a Report: see Reports below.

• To show only documents relating to the JobNo of the currently highlighted document,
• Whether to show all revisions, or only the latest revision which is the default.

• Whether the revision of the document has been issued,
• Whether there is an attachment, and whether it is accessible or not.

• New: presents a screen without any information on it.
• Similar: presents a screen with the information from the document currently selected on the browse tab.
• Add Revision: presents a screen with the revision area without any information on it.
• Delete: allows removal of a revision of a document that has NOT been issued. Once all but one of a documents revisions have been removed, the document and its one revision may be removed.

• The Document,
• The Revision of the Document.

• The JobNo,
• The Document No (and optionally a second reference viz the Project Document No),
• The Title, Document Type, and Size.

• Revision No
• Stage (if required)
• Date of Revision
• Description of the Revision
• Location of hard copy
• DCN. This is an optional 5 character reference often used to identify a relevant Document Change Notice.

Attachments may be made for the Master and for the Revision.

• Allocation of Groups to the document - See Technical Documents, Groups.
• Allocation of Keywords - See Work Package Management, Keywords. Keywords may be allocated to either:
  • The document, or
  • The revision of the document.

• Basic filtering (through the context menu) which includes showing only documents relating to:
  • A single JobNo
  • A single JobNo and Allocated to a Group, which is specified. See Technical Documents, Overview, Document Filters.

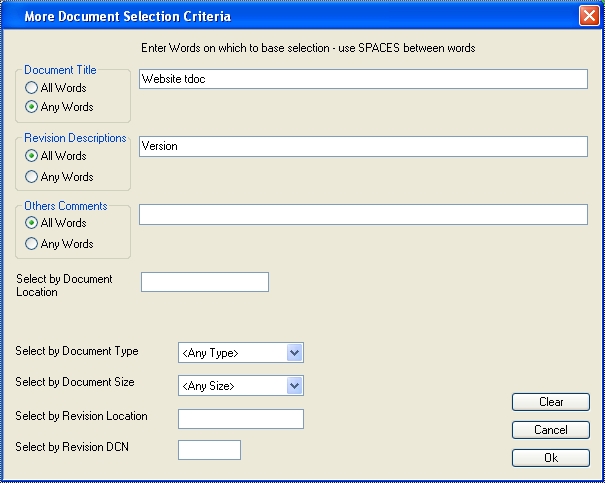

• Complex filtering (accessed from the context menu) based on text within document and revision titles and comments, and five other filters.

The information about stages shown below varies depending on the settings for Stages in the Parameters. In particular,

• If stages are NOT enabled, then neither the stage nor date of the stage are shown.
• If stages are mandatory, the stage date is the same as the revision date and is not shown.
• If stages are optional, the information about the stage relates to the latest stage recorded.

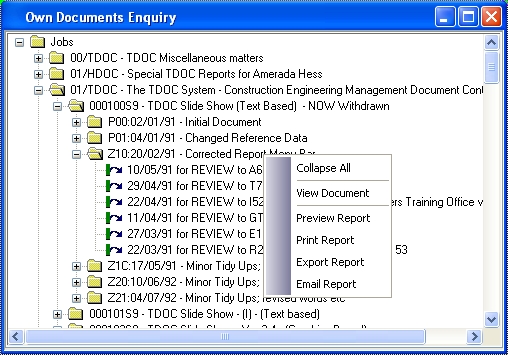

• A document enquiry showing the document's revisions and their movements to be reviewed. Double clicking a document also launches the enquiry, from which:
  • The revision of a document may be viewed if an electronic version exists,
  • A detailed report of the document may be generated in the same manner as from the Enquiry, see below.
• A report listing the selected documents. Click to view sample Report.

• The document to be viewed if an electronic version exists,
• A detailed report for the selected document to be generated.

• A range of documents only,
• Only Documents allocated to a specific group,
• Advanced filter options: as described above for the Browse.
• Various levels of information which are:
  • Documents only,
  • Documents and Revisions only,
  • Documents, Revisions and Movements.
• Range of Revision Dates for selecting documents,
• Whether to report on all or just the latest revision,
• If Stages are enabled, to filter on stages.

In order to assess the "scale" of a possible problem, a facility exists via the Count button to count the number of documents and their revisions which meet the specified criteria before a report is generated.

• Technical Documents, Issue Documents, Reports,
• Technical Documents, Issue Documents, Acknowledgements,
• Technical Documents, Receive Comments, Comments Sheets.

The following Maintenance reports are included in Technical Documents, Others Document , Reports:

• Linked Documents
• Incoming Document Numbers
• Document Metrics
